Introducing RSG Document Boxes

Fire alarm records need a place on site. The RSG document box family gives installers and facility teams a dedicated, lockable cabinet for manuals, drawings, and system records.

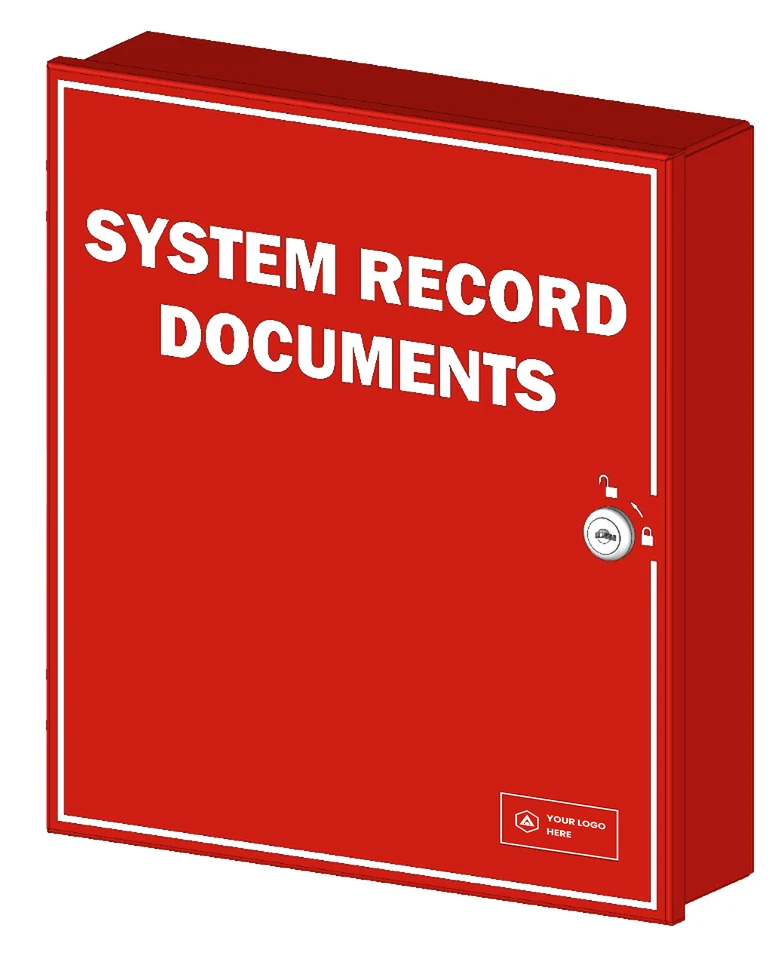

Choose RSG-RDB for printed records, or RSG-RDB-U to add an 8 GB flash drive for digital documents. Both models are part of our document box family, where you can find the product sheet, configurations, and complete specifications.

Two ways to keep records together

The cabinets accommodate 8½ × 11-inch documents and include a removable document holder, key-ring hooks, and a business-card bracket to help organize the record set.

Built for the installation

RSG document boxes use 18-gauge cold-rolled steel with spot-welded corners and a powder-coat finish. A ¾-inch barrel cam lock with a custom key code controls access, while lift-away stainless-steel hinges support service access.

• Overall dimensions: 13¼ × 12 × 3⅛ inches.
• Mounting: four mounting holes support surface or flush installation.
• Standard finishes: red or black powder coat.
• Standard cover text: System Record Documents or Fire Alarm Documents, with white screen printing.

Choose the finish and identification your project needs

The family includes eight standard part numbers across the two storage models, two finishes, and two cover legends. Review the configuration table to choose a starting point.

For a project with specific identification requirements, talk with RSG about custom wording, logos, colors, and key-lock options. Sales can help confirm the configuration and availability.

Plan your next installation

Visit the RSG-RDB document box page for product photography, dimensions, the configuration table, and the approved product sheet.

Contact Sales with the model, finish, cover text, and quantity you need. Our team will help with configuration, availability, and pricing.
